Internal waves and "vortices"¶
Simple kinematic decomposition of stratified flows:
$\omega_z$
$\nabla_h u$
shear modes
Geophysical measurements interpreted as the signature of IG waves¶

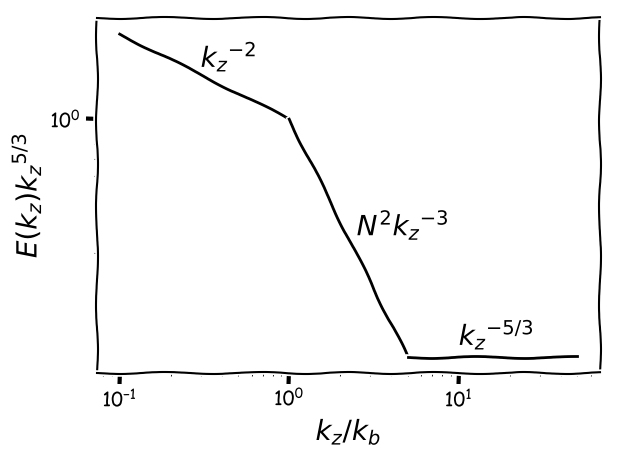

"Garrett-Munk spectra"
temporal spectra: energy for $f < \omega < N$, $\omega^{-2}$
vertical spectra:
Naive representation: cascade of (weakly interacting) IG waves?

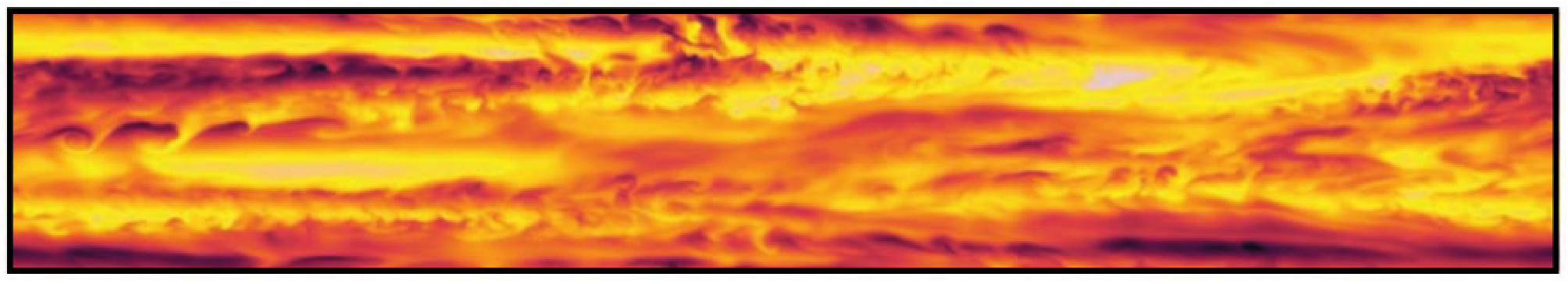

3d stratified turbulence¶
2 parameters:
horizontal Froude number $F_h$
buoyancy Reynolds number $\R = Re {F_h}^2$
"Strongly stratified turbulence" regime ($F_h \ll 1$, $\R > 10$):¶
- downscale energy cascade
- $\omega_z \sim \nabla_h u$
And "pure internal gravity wave turbulence" ???¶
How to get "pure" IG wave turbulence?¶
We don't want $\omega_z$
$\Rightarrow$ we can use 2d stratified turbulence.
We don't want shear modes
$\Rightarrow$ we disable them
As a first approx., we don't need rotation
$\Rightarrow f = 0$
2D stratified turbulence to understand IG wave turbulence¶
Advantage: cheap so we can run several long simulations at high resolution and $Re$
Numerical setup¶
Goal: obtain IG wave turbulence $\Rightarrow$ forced dissipative turb.¶
Which dissipation?¶
Dissipation only at small scales
Hyper viscosity $\nu_8$
Which forcing?¶
for simplicity: constant total energy injection rate $P$
force eigenmodes of the linearized equations
correlation time $\sim$ wave period $T_N(\kk)$
intermediate-scale (possibility of upscale and downscale cascades)
Problem standard forcing in a shell:
no well-defined $T_N(\kk)$

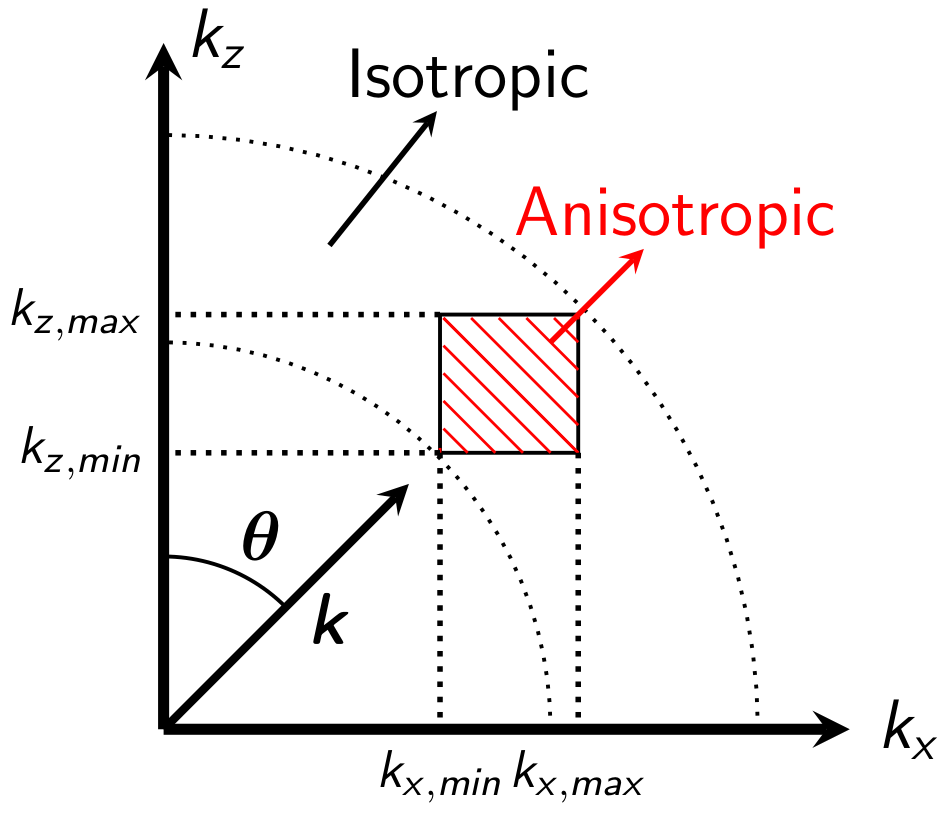

Forcing in a smaller region of the spectral space
$\Rightarrow$ well-defined non-dimensional numbers
direction of propagation $$F = \frac{\omega_l}{N}$$
stratification / forcing
$$ \gamma = \frac{\omega_l}{\omega_f} \propto N$$
with ${\omega_{f}}^3 = P {k_f}^2$
Forcing Froude number $F_{hf} = F/\gamma$
IG wave turbulence in the "oceanic-like" limit ?¶
- strongly stratified (weak forcing)
- weak dissipation at large horizontal scale (large buoyancy Reynolds number)
Numerical setup¶
Several long simulations for different¶
stratification / forcing $$\gamma = \omega_f / \omega_l \propto N$$
Numerical resolution, viscous coefficient $\nu_8$ and Reynolds number $Re_8$
$(n_x,\ n_z) = (960,\ 240)$, $(1920,\ 480)$, $(3840,\ 960)$, $(7680,\ 480)$ and $(15360,\ 960)$
Constant for this presentation:¶
Direction of propagation of forced waves
Here $F = \omega_l / N = 0.71 \Rightarrow \theta = 45°$
Few (quite simple) results !¶

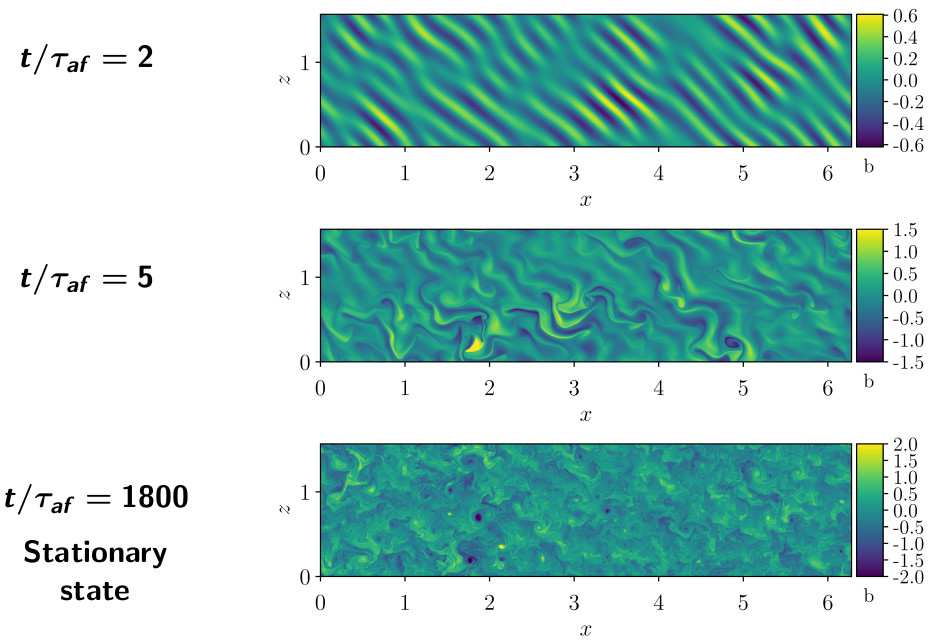

We obtain statistically stationary flows¶
Dissipation only at small scales $\Rightarrow$ energy transfers towards small scales
$\neq$ than for 2d turbulence!
$\neq$ than with shear modes!

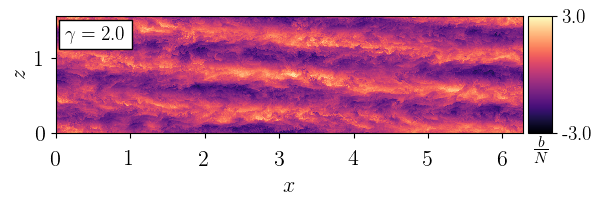

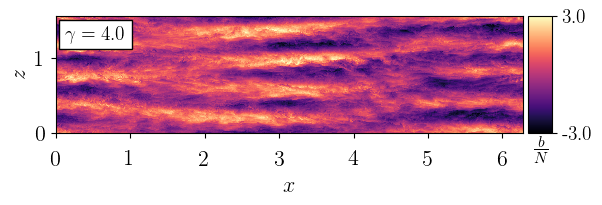

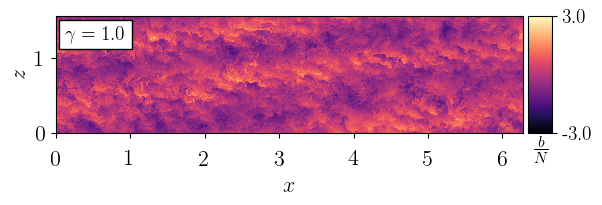

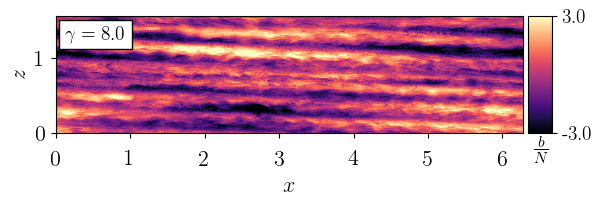

Buoyancy fields at stationary state for $n_x = 3840$¶
Small vertical length scales for strong stratification
Warning: dissipation at large horizontal scale even for large $Re$

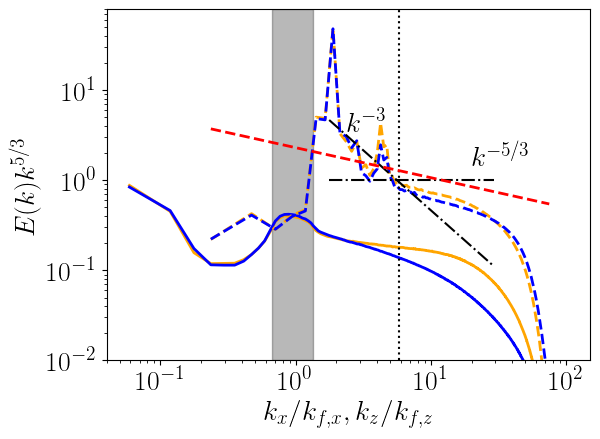

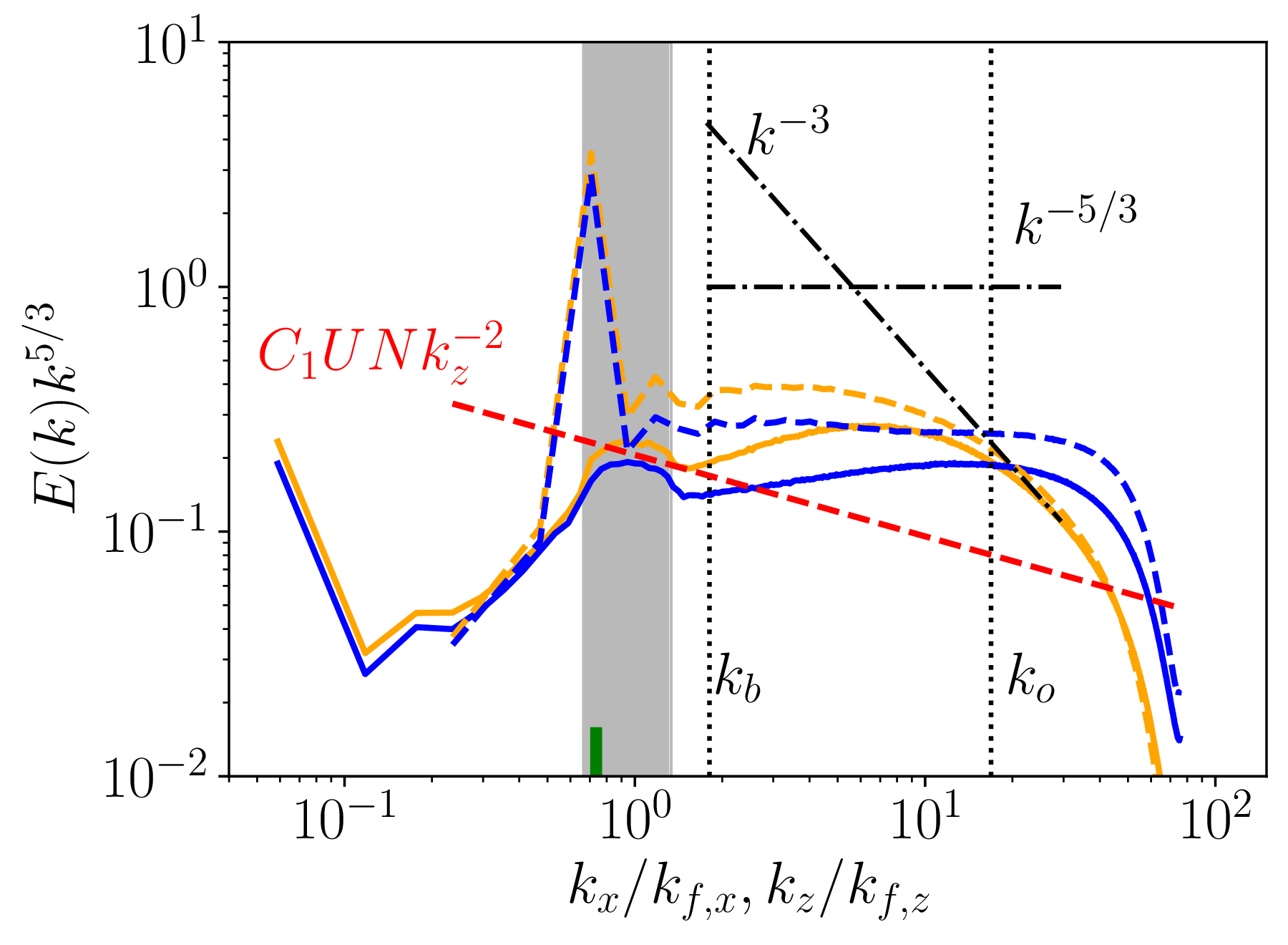

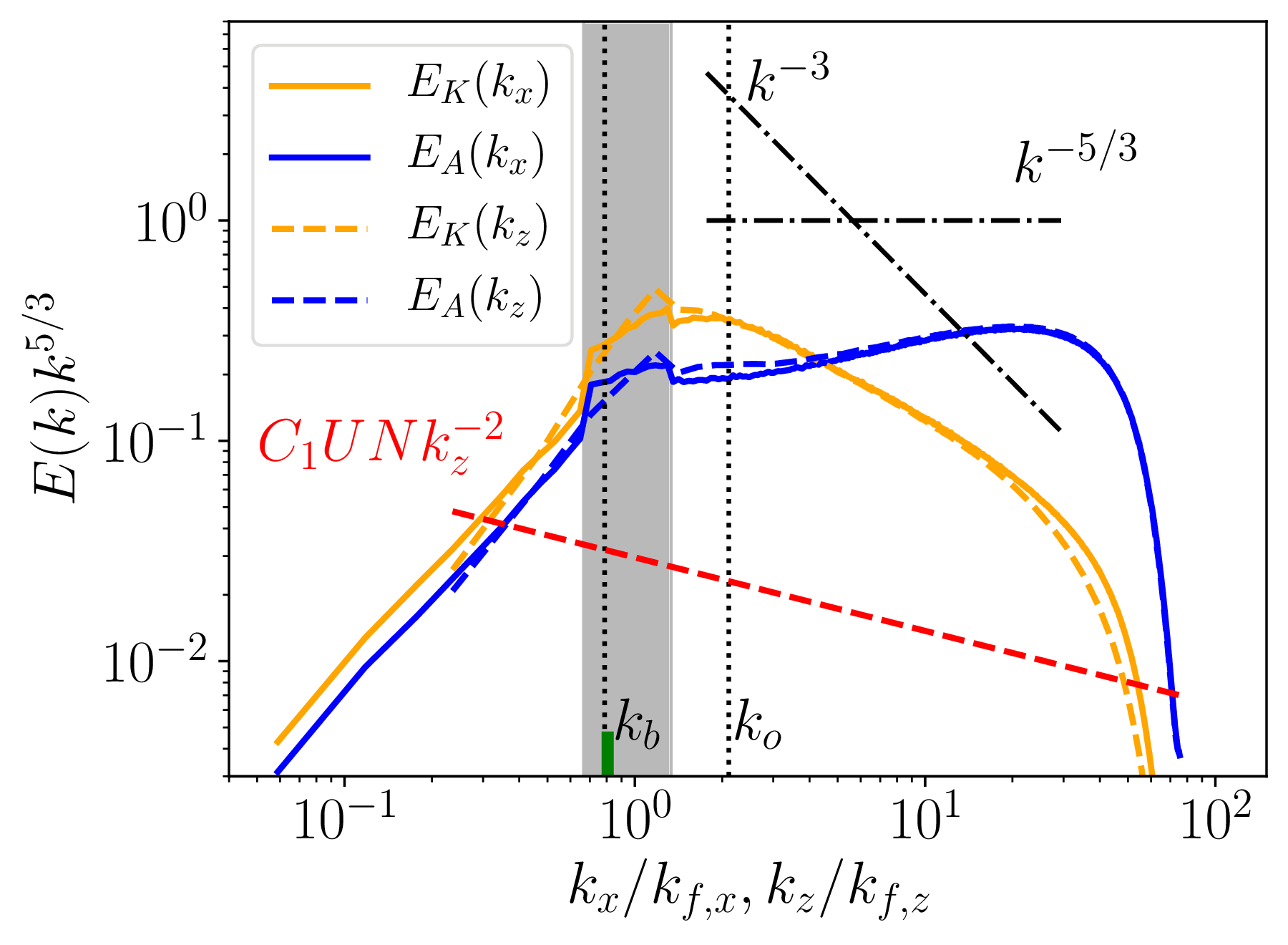

Horizontal and vertical spectra for $n_x = 3840$¶
$\gamma = 0.5 \hspace{8cm} \gamma = 2 \hspace{8cm} \gamma = 12$
Strong stratification: viscously damped $\Rightarrow$ turbulence killed

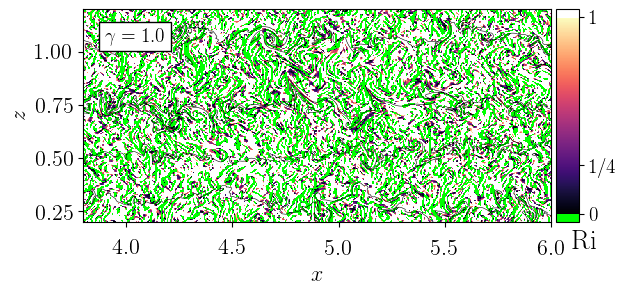

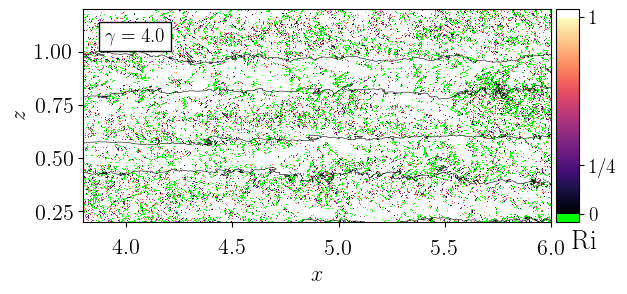

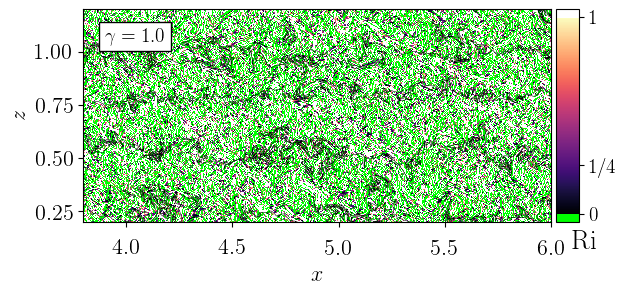

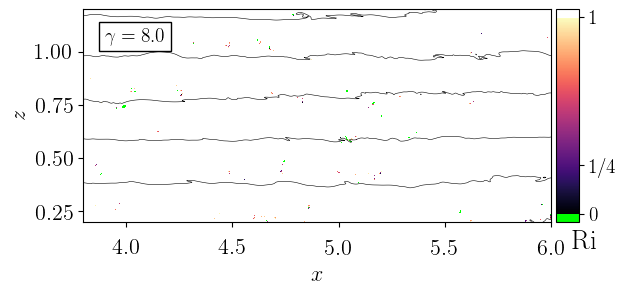

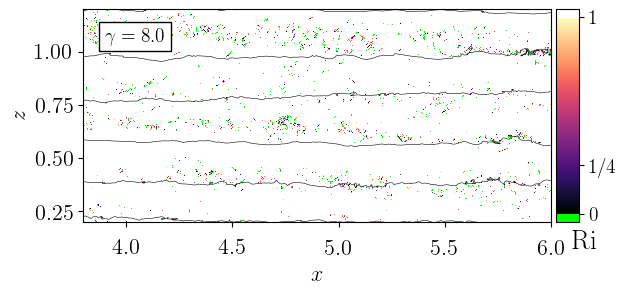

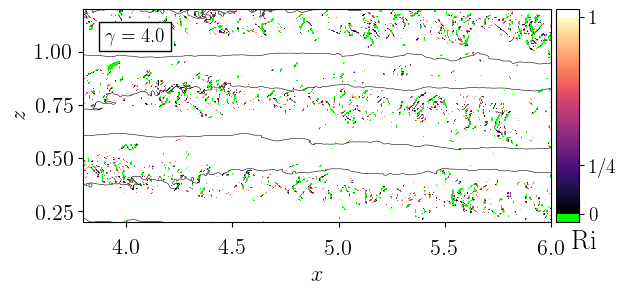

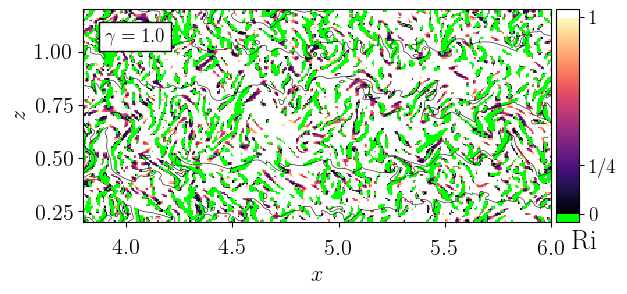

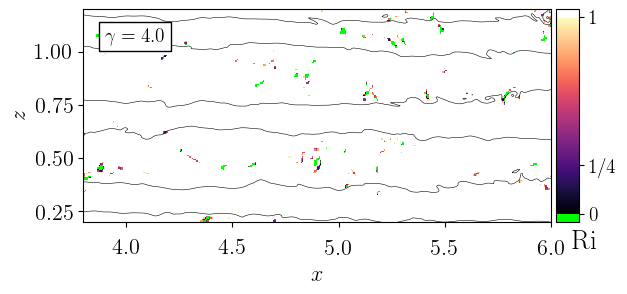

Local Richarson number $Ri$ for $n_x = 3840$¶
Large-scale isotropy and small-scale isotropy?¶

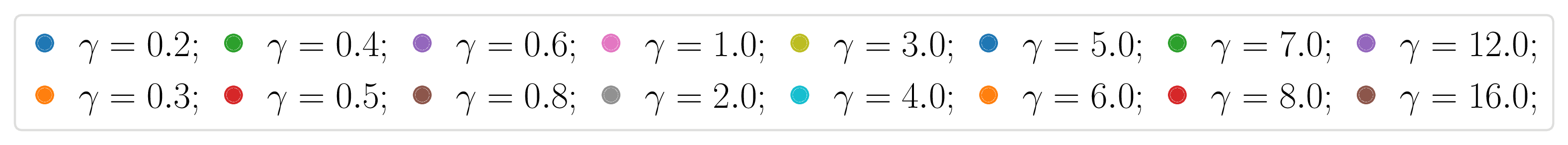

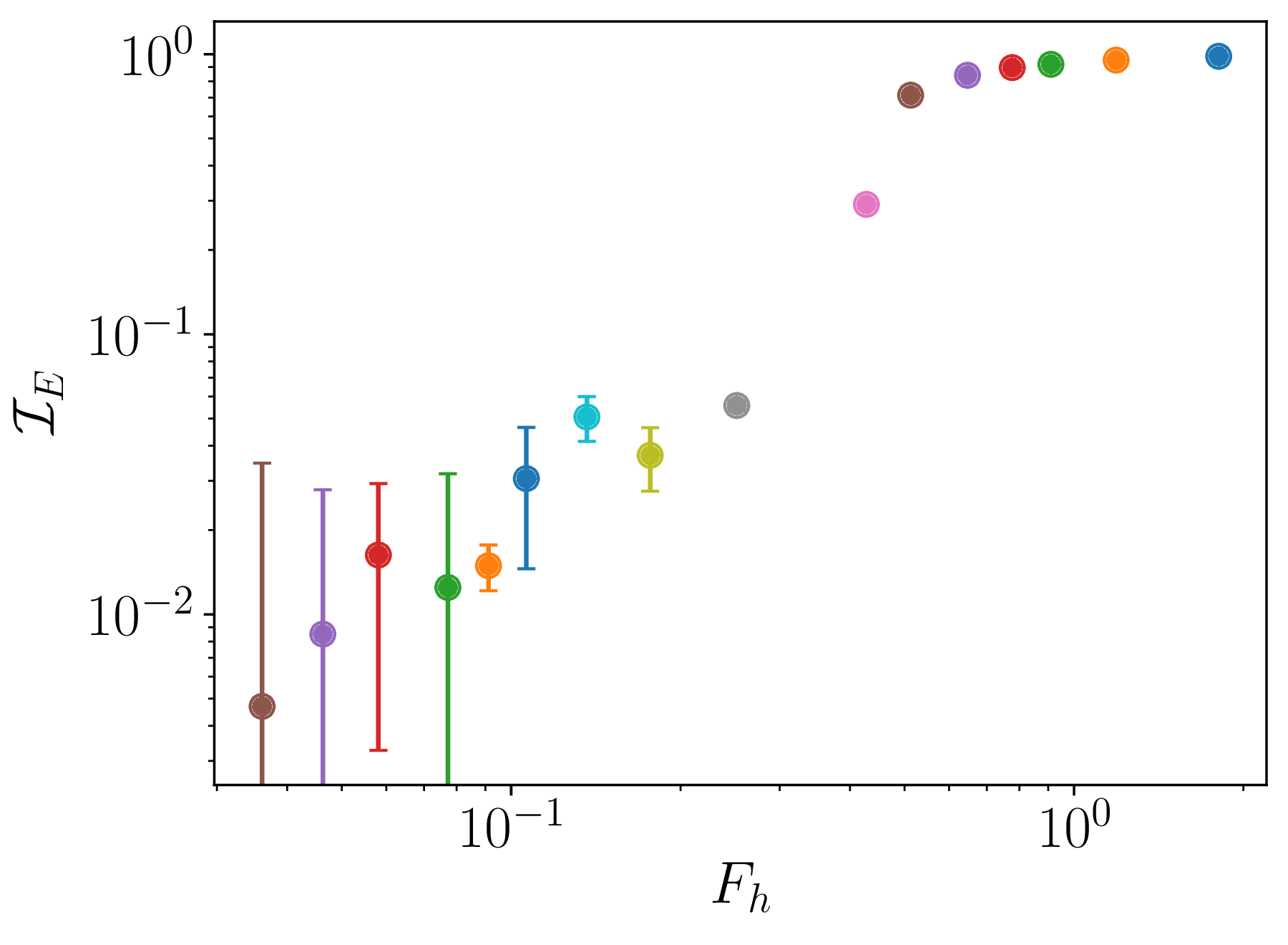

Large-scale isotropy for $n_x = 3840$¶
$$ \mathcal{I}_E = 4 \left(\frac{E_{Kx}}{E_K} - 1\right)^2\text{ versus }F_h \propto 1/ \gamma$$

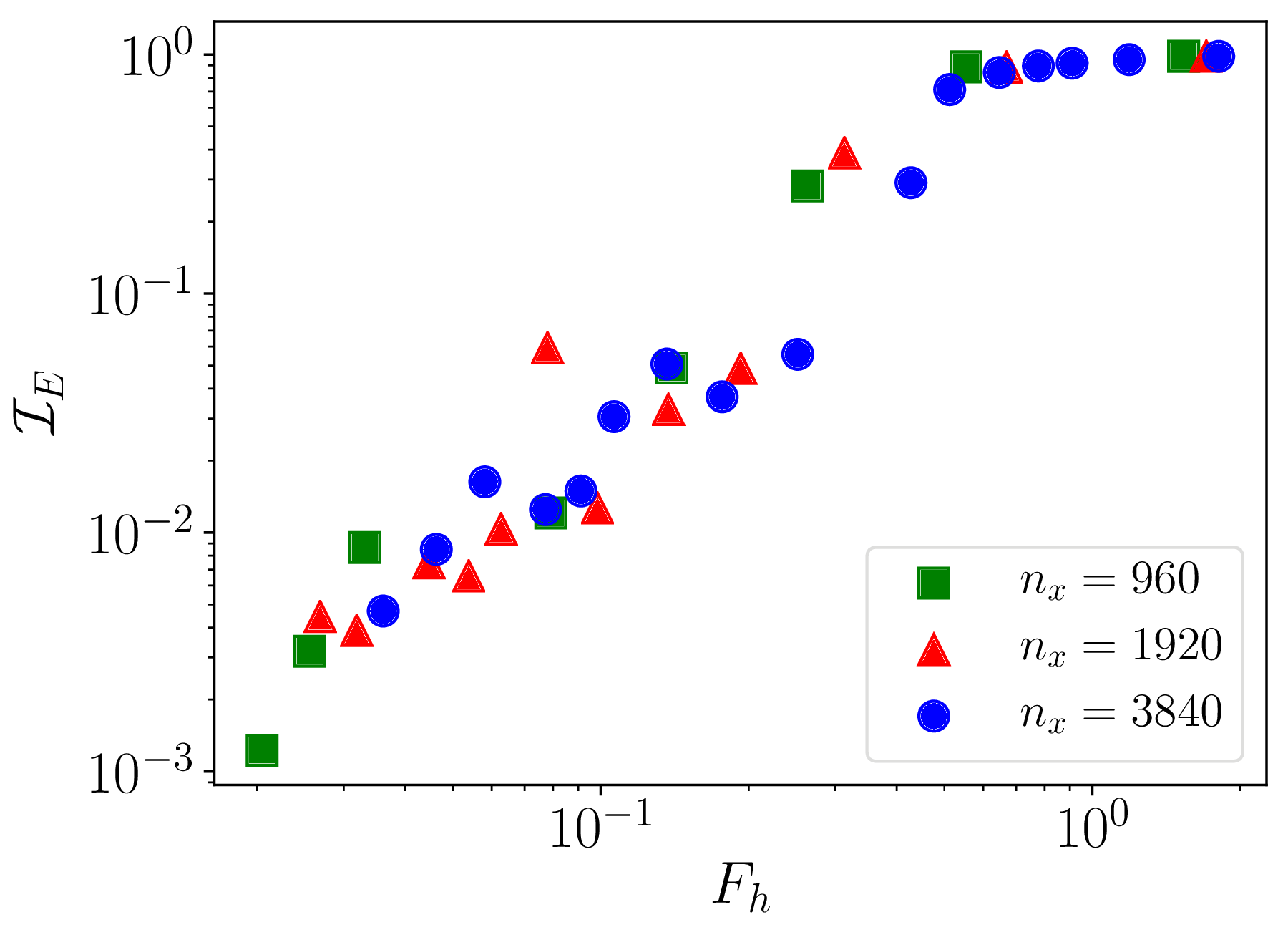

Large-scale isotropy for $\neq Re$¶
Consistent: $\mathcal{I}_E = f(F_h)$ with weak $Re$ dependence

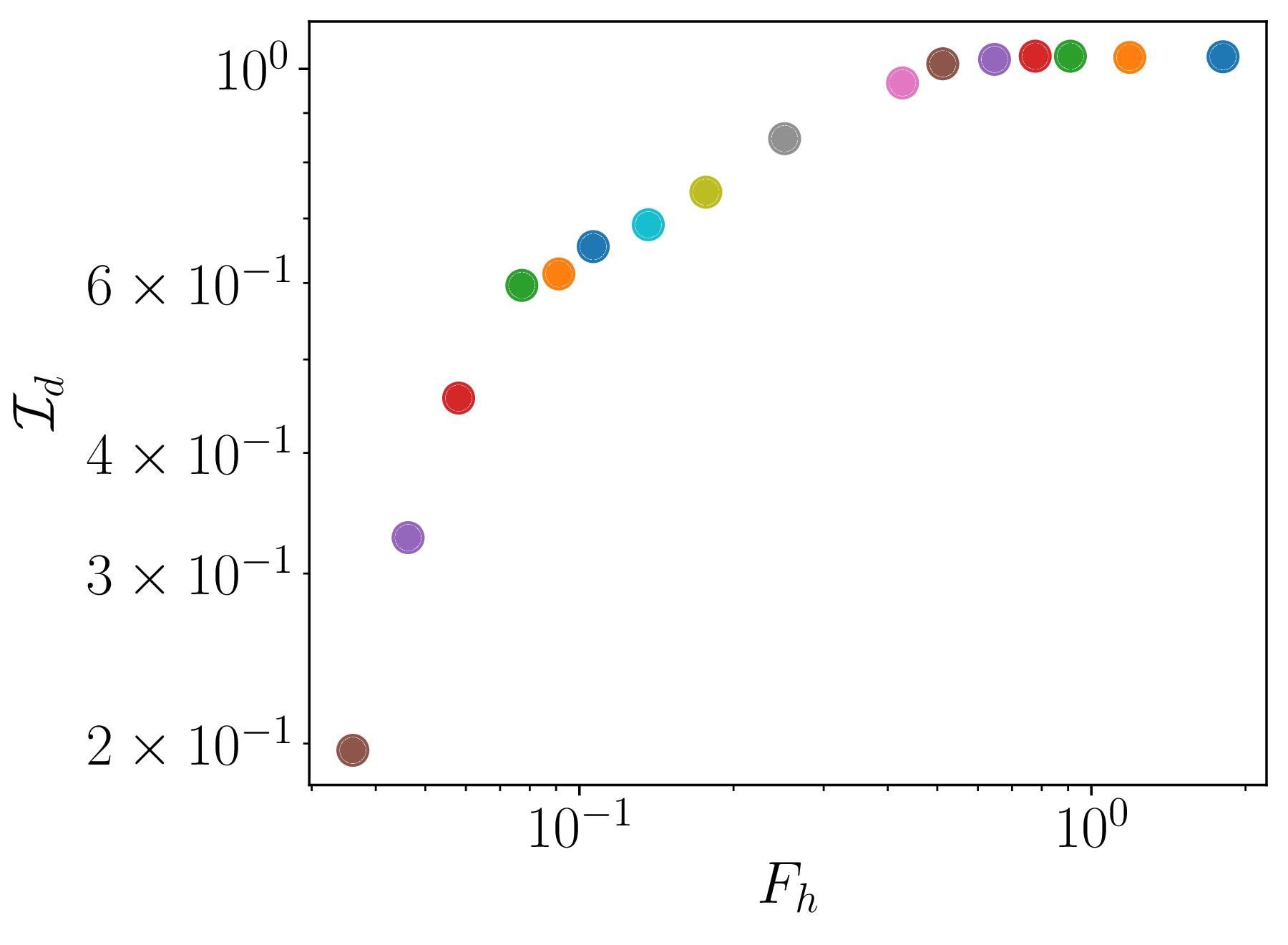

Isotropy of the dissipation for $n_x = 3840$¶
$$\mathcal{I}_d = \frac{k_{1/2x}}{k_{1/2z}}$$

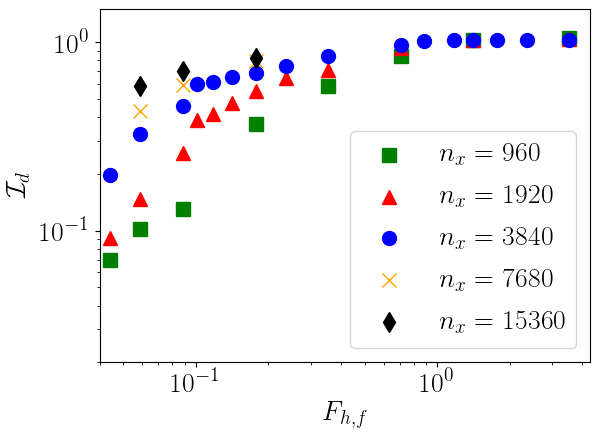

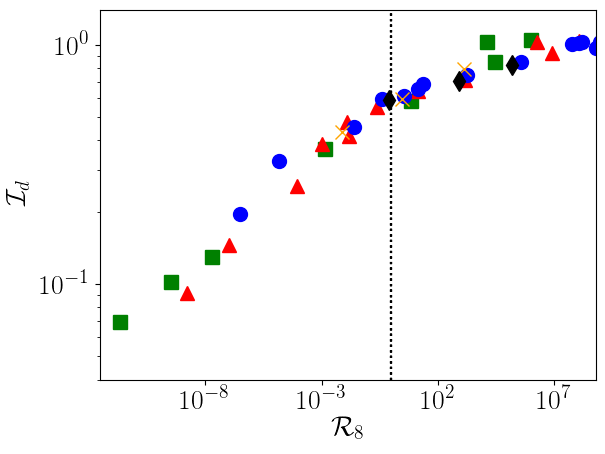

Isotropy of the dissipation for $\neq Re$¶

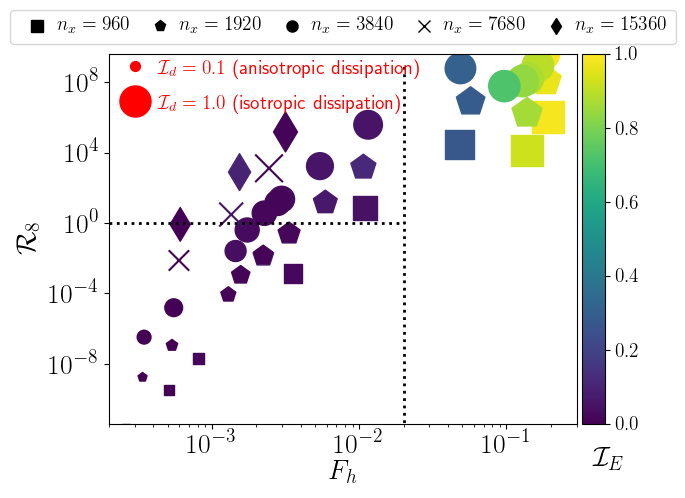

Summary: $\mathcal{I}_E$ and $\mathcal{I}_d$ in the $(F_h,\ \R_8)$ space¶
3 regimes¶

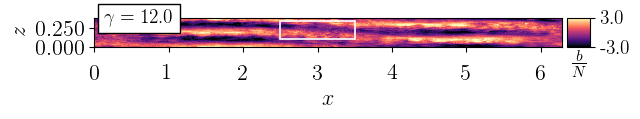

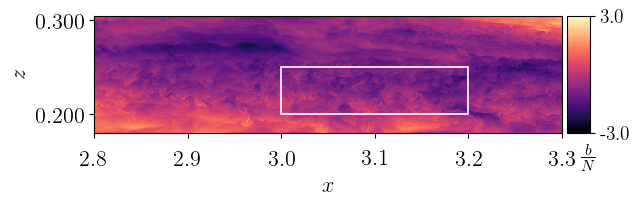

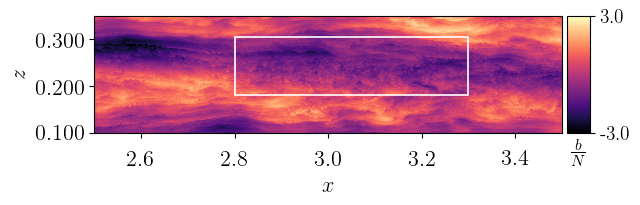

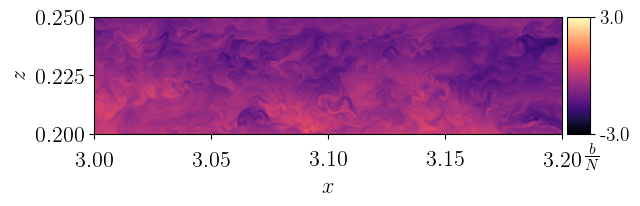

Snapshot buoyancy field for $n_x = 15360$ (with 3 zooms)¶

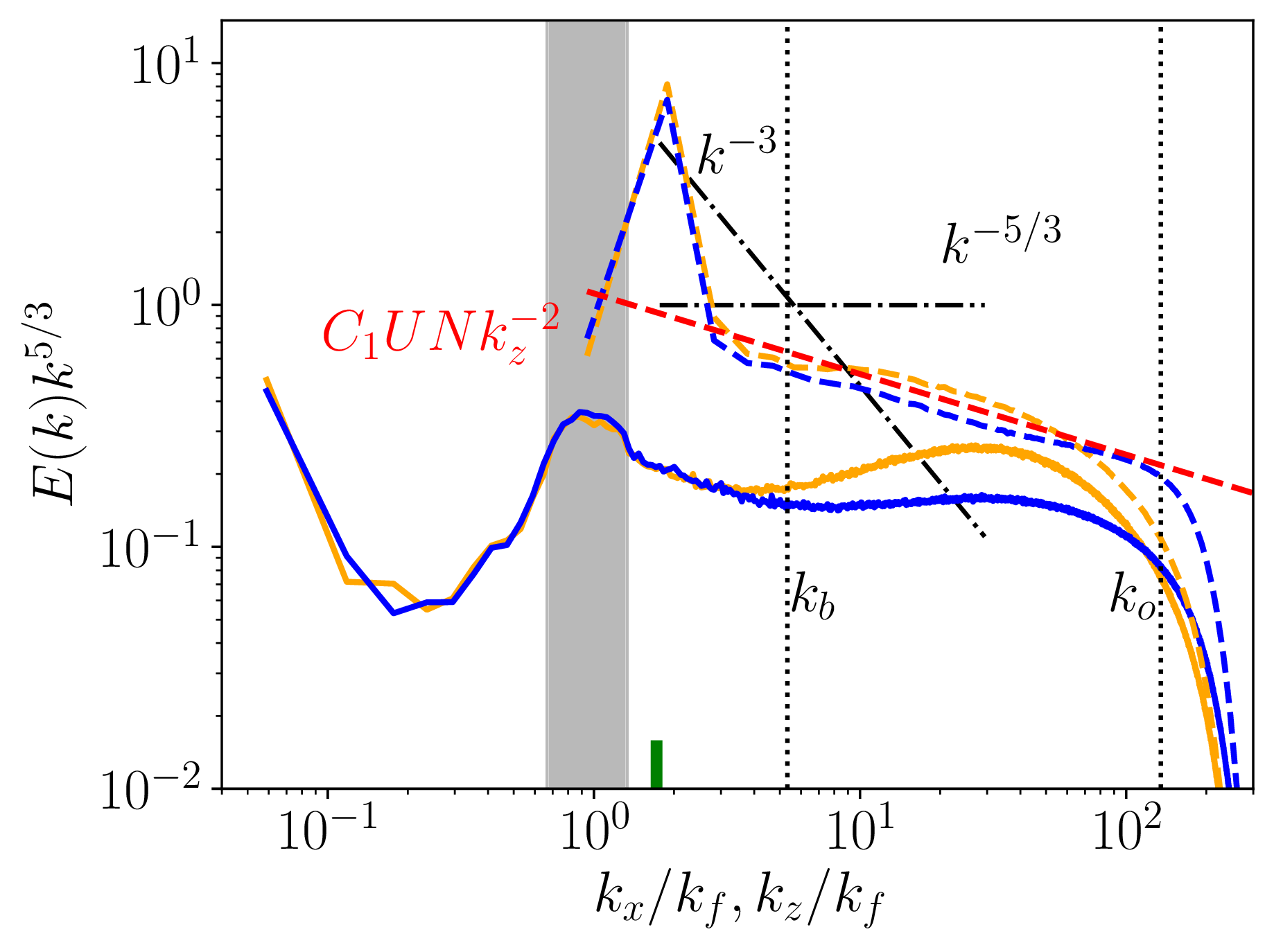

Spectra for $n_x = 15360$ and $\gamma = 8$¶

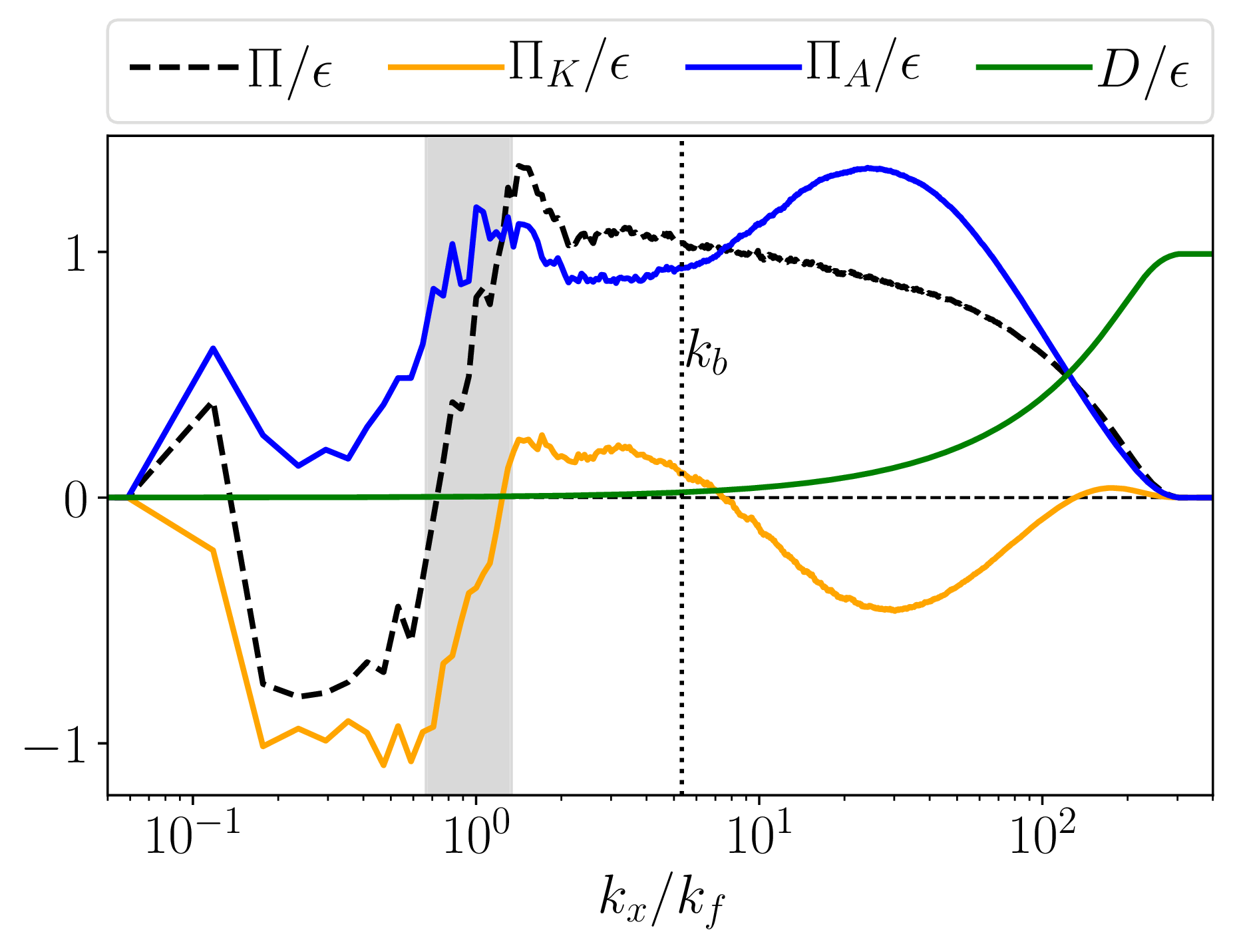

Spectral energy budget for $n_x = 15360$ and $\gamma = 8$¶
Inconsistent with the naive representation of a simple local weak wave cascade
Conclusions¶
Clean setup
Statistically steady state for all parameters
3 regimes
Regime for $\R_8 \gg 1$ and $F_h \ll 1$¶
Not a simple wave cascade
Transfers towards "layered", very slow waves (nearly shear modes)
Vertical spectra: $k_z^{-2}$, no $k_z^{-3}$
But something like weak wave turbulence ($Ri > 1$, $k_z^{-2}$, spatio-temporal spectra [not shown])
Perspectives (FluidSim: easy to reproduce and extend!!!)¶
Mechanisms (PSI?, effect layered waves?)
Different parameters: angle of forced waves, rotation, ...
3d simulations?
A thesis:
- open-source never so strong,
- new tools and methods allowing collective work,
- possibility of collaborations on good quality research codes.
Some packages:
fluidimage, fluidlab, fluidsim, fluidfft, transonic, ...
The code is interesting: FluidSim¶
(Ashwin Vishnu, Cyrille Bonamy, Miguel Calpe Linares, Pierre Augier)
Open-source collaborative framework / library for writting solvers
High quality code (tests run with continuous integration, proper documentation, issue tracker)
Very user-friendly
Developer friendly: mostly in Python, highly modular (object-oriented Python)
Extensible (for example fluidsim-ocean)
Specialized in pseudo-spectral (Fourier), but not only
Very efficient
Under the hood:¶
FluidFFT: Python / C++ library for (parallel) Fourier transforms (2D and 3D)
Transonic and Pythran: "Make your Python code fly at transonic speeds!" (actually at good-C++ speed)
