MILESTONE project: studying mixing efficiency and stratified turbulence with

  • experiments (need large scales to reach geophysical regimes $\Rightarrow$ Coriolis platform)
  • numerical simulations

  • open-source and open-science (Fluiddyn project)

Mixing efficiency and mixing coefficient

$$Ri_f \equiv \frac{\eps_P}{\eps_K + \eps_P} \quad \mbox{ and } \quad \Gamma \equiv \frac{\eps_P}{\eps_K},$$

where $\eps_P$ and $\eps_K$ are the potential and kinetic energy dissipation.

Simple case: mixing a stably stratified fluid by stirring

  • stirring: injection of kinetic energy ($P_K$)

  • conversion from kinetic energy to potential energy (buoyancy flux) $- \mean{b w} = C_{K\rightarrow A} = \eps_P$

  • dissipation of kinetic and potential energy $\eps_K + \eps_P = P_K$

  • energy spent for mixing = dissipation of potential energy

$$ Ri_f \equiv \frac{\eps_P}{\eps_K + \eps_P} = \frac{\mbox{energy spent for mixing}}{\mbox{total injection}}$$

Fluid mechanics uses and progresses with new technologies

  • cars, aircrafts
  • computers

A new technology of today: computers, web, data

Example: Youtube! Video of Despacito seen more than $4\times 10^9$ times!

  • World Wide Web
  • big data (storage, flux)
  • companies (Youtube, Google)
  • algorithms
  • open-source (using in particular Python)

Strong dynamics related to computers, web, data, open-source

Very important issues and challenges:

  • Understanding of these dynamics and the opportunities by the scientific communities

  • Adoption of methods and tools $\Rightarrow$ Open-science


Open-source today

Big changes in how programs are developed:

  • a lot of money (web, big companies as google or facebook and startups)
  • serious, good quality, good coding practices:

    • distributed version control software (Git, Mercurial)
    • forges for collaborative development (github, bitbucket, gitlab)
      • issue tracker
      • continuous integration
    • documentation
    • unittests
    • benchmarking
  • new tools and environments (for example Python)


  • Transparency in scientific methods and results

  • Openness to full scrutiny

  • Ease of reproducibility

  • No more "reinventing the wheel" - particularly in code development

More practical:

  • Doing sciences with open-source methods and tools

  • Share using the web

Remark: different stories and tools for different communities

Fluid mechanics not in advance... Dominance of Fortran and Matlab,

  • good tools for few very specialized purposes
  • but not plugged to the open-source and web dynamics

Python language and its scientific ecosystem for open-science

A well-thought language:

  • dynamic
  • generalist
  • communication of ideas between people
  • fast prototyping
  • easy to learn and teach
  • multi-platform

Defacto the standard language for open-science (see https://stackoverflow.blog/2017/09/06/incredible-growth-python/)

Scientific ecosystem: strong dynamics, rich and complicated landscape (many, many projects):

  • rich Python standard library
  • core scientific Python packages (ipython, jupyter, numpy, pandas, scipy, matplotlib),
  • many specialized tools (oriented toward methods and goals),
    • performance (cython, pythran, numba, ...)
    • GPU, distributed computing
    • visualisation (see this presentation, for fluid: Paraview, Visit, ...)
    • symbolic math (sympy)
    • scientific file format (h5py, h5netcdf, ...)
    • statistics (statsmodels)
    • automatization, Internet of Things, Microcontrollers
    • image processing (scikit-image)
    • database (SQL, NoSQL, ORM)
    • Geographic Information System (Qgis)
    • Artificial Intelligence, Machine Learning, Deep Learning
    • GUI (PyQt, kivy, ...)
    • web framework

  • libraries by and for scientific communities (oriented towards subjects)
    • astropy and sunpy (astronomy, see for example LIGO)
    • biopython (molecular biology)
    • Nipy and Dipy (neurology)
    • obspy (seismology)
    • atmospheric and oceanic sciences (see for example this post)

    • fluid mechanics... only the very beginning of this trend (for example OpenFoam, Basilisk, Dedalus, Snoopy, PivMat, UVMat, OpenPIV, OpenPTV, etc.)

Back to the research project:

MILESTONE project: studying mixing efficiency and stratified turbulence with

  • experiments (need large scales to reach geophysical regimes $\Rightarrow$ Coriolis platform)
  • numerical simulations

  • open-source and open-science (Fluiddyn project)

Stratified flows and their different régimes

Introduction of 2 important non-dimensional numbers

  • horizontal Froude number $F_h$
(quantifying the effects of stratification)

  • buoyancy Reynolds number $\R = Re {F_h}^2$
(quantifying the effects of viscosity on the largest scales)

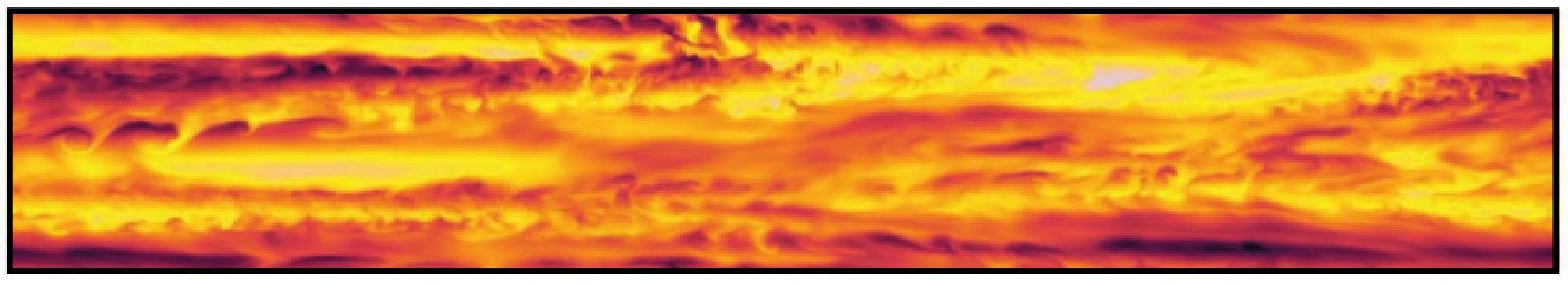

Brethouwer, Billant, Chomaz & Lindborg (2007)

Flow regimes in stratified fluids in the $[F_h,\ \R]$ parameter space

Methods: experiments in the Coriolis platform ($F_h \ll 1$ and $\R \gg 1$)

The Coriolis platform
(13 m diameter)
Used by international researchers through European projects (Euhit, Hydralab).

The MILESTONE experiment

Stratified and rotating turbulence in the Coriolis platform

 2 sets of experiments

  • Summer 2016 (a collaboration between KTH, Stockholm, Sweden and LEGI): we tried many things.

  • Summer 2017: focused on mixing without rotation

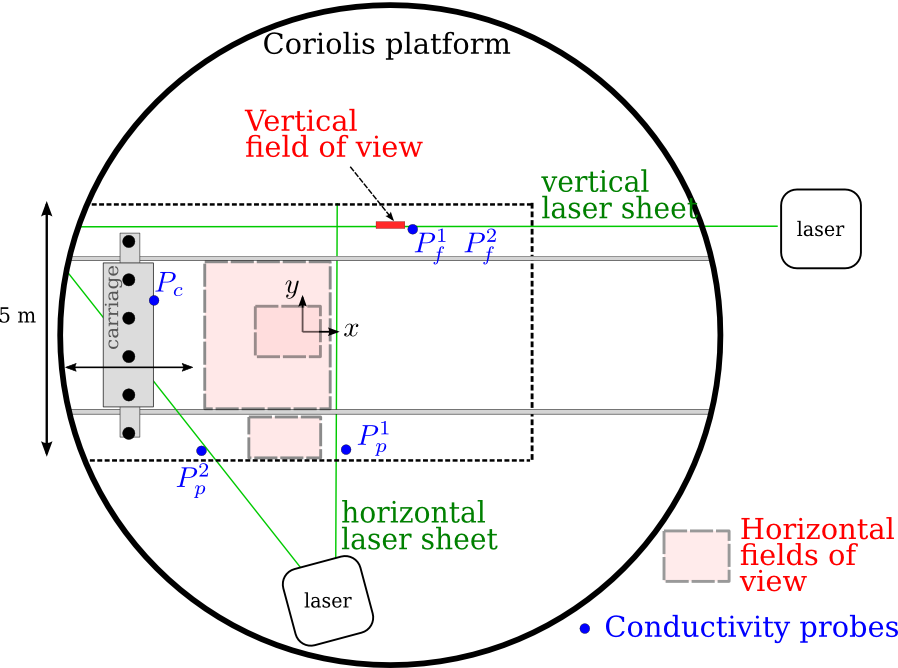

Top view (MILESTONE 2016)

A new carriage for the Coriolis plateform!

  • 3 m $\times$ 1 m
  • runs on tracks (13 m long)
  • good control in position ($\Delta x<$ 5 mm) and in speed ($U< 25$ cm/s)

Measurements: PIV and probes (density, temperature)

scanning PIV
probes on traverses

Needed developments


  • Control of instruments and objects for experiments

  • Post-treatment of images (PIV)

  • Analysis of experimental data + data sharing

Numerical simulations

  • Pseudo-spectral solvers, highly distributed shared memory (MPI), inline analyses

fluidlab: control of experiments in fluid mechanics

(in collaboration with Julien Salors, ENS Lyon)

Physical experiments can be seen as the interaction of autonomous physical objects

For the MILESTONE experiments:

  • moving carriage, motor (Modbus TCP), position sensor (quadrature signal)
  • probes attached to a transverses (Modbus TCP)

  • scanning Particle Image Velocimetry (PIV):

    • oscillating mirror driven by an acquisition board
    • cameras triggered by a signal produced by an acquisition board

Issue: control with computers the interaction and synchronization of the objects

(in collaboration with Julien Salors, ENS Lyon)

Physical experiments can be seen as the interaction of autonomous physical objects

  • In Python
  • Object-oriented programming
  • Very easy to write instrument drivers
  • Automatic documentation for the instrument drivers

A little bit of Graphical User Interface is easy, fun and useful. We use PyQt.

Remark: reusable code, here, random movement for another experiment.

fluidimage: scientific treatments of images

(in collaboration with Cyrille Bonamy and Antoine Campagne, LEGI)

Many images (~ 20 To of raw data): embarrassingly parallel problem

  • Clusters and PC, with CPU and/or GPU
  • Asynchronous computations

    • topologies of treatments
    • IO and CPU bounded tasks are splitted
  • Efficient algorithms and tools for fast computation with Python (Pythran, Theano, Pycuda, ...)

  • Images preprocessing

  • 2D and scanning stereo PIV

  • Utilities to display and analyze the PIV fields

    • Plots of PIV fields (similar to PivMat)
    • Calcul of spectra, anisotropic structure functions, characteristic turbulent length scales

Remark: highly inspired by PivMat (F. Moisy) and UVmat (J. Sommeria), that we continue to use, in particular for calibration

Calcul of scanning PIV on the LEGI cluster

Example of scripts to launch a PIV computation:

from fluidimage.topologies.piv import TopologyPIV

params = TopologyPIV.create_default_params()

params.series.path = '../../image_samples/Karman/Images'
params.series.ind_start = 1
params.piv0.shape_crop_im0 = 32
params.multipass.number = 2
params.multipass.use_tps = True
# params.saving.how has to be equal to 'complete' for idempotent jobs
# (on clusters)
params.saving.how = 'complete'
params.saving.postfix = 'piv_complete'

topology = TopologyPIV(params, logging_level='info')

Calcul of scanning PIV on the LEGI cluster

Remark: launching computations on cluster is highly simplified by using fluiddyn:

from fluiddyn.clusters.legi import Calcul7 as Cluster

cluster = Cluster()

    'piv_complete.py', name_run='fluidimage',
    idempotent=True, delay_signal_walltime=300)

Analysis, production of scientific figures, data sharing

  • For one experiments, a lot of different files for different types of data (txt and hdf5 files)
  • Classes for experiments and types of data (for example probe data or PIV field).
In [7]:
from fluidcoriolis.milestone17 import Experiment as Experiment17
iexp = 21
exp = Experiment17(iexp)
In [8]:
print(f'N = {exp.N} rad/s and Uc = {exp.Uc} m/s')
N = 0.55 rad/s and Uc = 0.12 m/s
In [9]:
print(f'Rc = {exp.Rc:.0f} and Fh = {exp.Fhc:.2f}')
Rc = 11425 and Fh = 0.44
In [10]:
print(f'{exp.nb_periods} periods of {exp.period} s')
3 periods of 125.0 s
In [11]:
print(f'{exp.nb_levels} levels for the scanning PIV')
5 levels for the scanning PIV

Studying and plotting PIV data

In [23]:
from fluidcoriolis.milestone import Experiment
exp = Experiment(73)
In [27]:
cam = 'PCO_top'  # MILESTONE16
# cam = 'Cam_horiz'  # MILESTONE17
pack = exp.get_piv_pack(camera=cam)
In [25]:
piv_fields = pack.get_piv_array_toverT(i_toverT=80)
In [26]:
piv_fields = piv_fields.gaussian_filter(0.5).truncate(2)
In [79]:
piv = pack.get_piv2d(ind_time=10, level=1)
piv = piv.gaussian_filter(0.5).truncate(2)
_ = plt.xlim([-1.7, 0.5])
_ = plt.ylim([-1.3, 1.3])

MlLESTONE campaigns in the $[F_h,\ \R]$ parameter space

Density profiles

In [20]:
from fluidcoriolis.milestone17.time_signals import SignalsExperiment
signals = SignalsExperiment(iexp)
In [21]:
